Model 0750

Thermostatic Control Valve

  • Size: 3/4" to 1/2"
  • Diameter: DN20 to DN15
  • Three-Way thermostatic valves
  • Wide range of temperatures
  • Heavy duty, rugged construction, tamper-proof
  • Compact, self contained, non-adjustable
  • Operate in any orientation

Fluid Power Energy (FPE) thermostatic valves utilize the principle of expanding wax, which in the semi-liquid state undergoes large expansion rates within a relatively narrow temperature range. The self-contained element activates a stainless steel sleeve, which directs flow. All FPE thermostatic valves are factory set at predetermined temperatures: no further adjustments are necessary.

Contact an FPE Representative for connection size options. Contact Us

Description

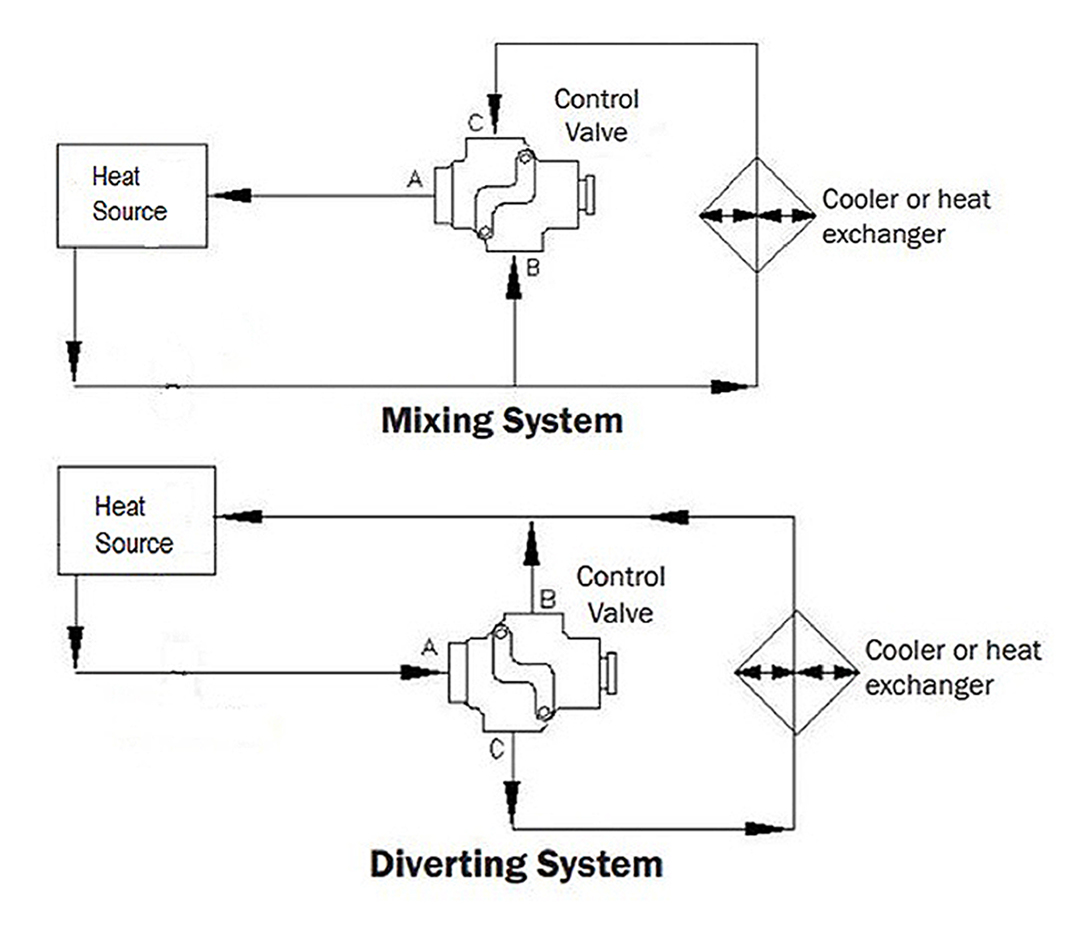

When used in a diverting application, on start-up the total fluid flow is routed back to the main system. As fluid temperature rises to the control range, some fluid is diverted to the cooling system. As fluid temperature continues to increase, more flow is diverted. When the thermostat is in a fully stroked condition, all fluid flow is directed to the cooling system.

FPE thermostatic valves may also be used in a mixing application. Hot fluid enters the “B” port and colder fluid enters the “C” port. The flows mix and the thermostat adjusts flow through ports “B” and “C” to reach the desired temperature, exiting the “A” port.

Standard FPE thermostatic valve housings are made from aluminum and grey iron castings, however, ductile iron, bronze, steel and stainless steel housings are available.

Additional BSP, SAE and JIS threads available.

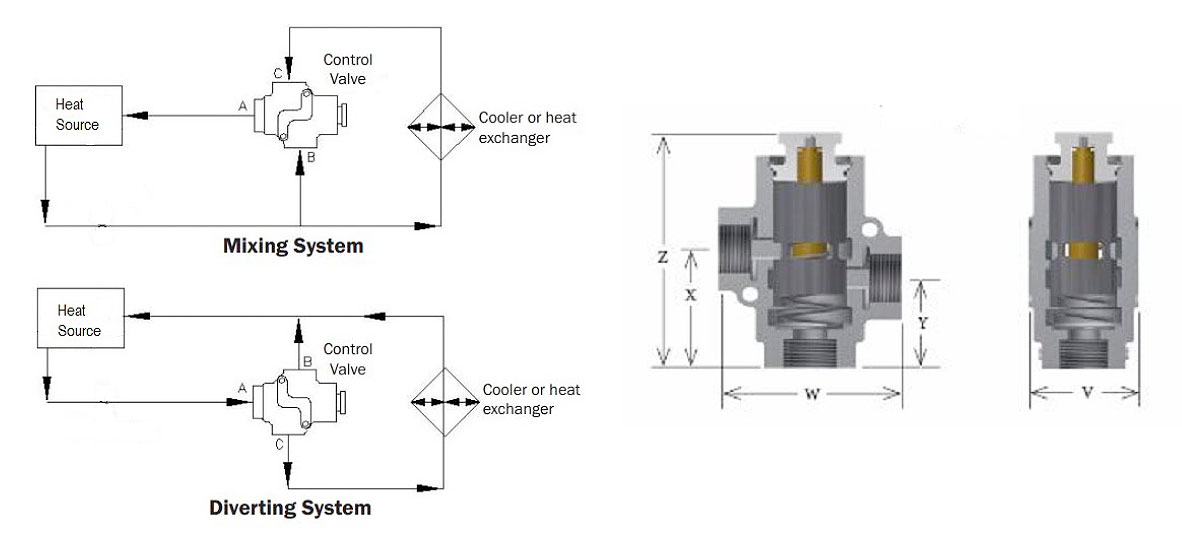

Dimensions

Model 0750 - Valve Specifications

All units in inches (mm) or lbs (Kg); English (metric)
MODEL NUMBER BODY MATERIAL* CONNECTION SIZE PRINCIPAL DIMENSIONS UNITS NO. OF ELEMENTS
X Y W Z V
*0750 AL, B 3/4" NPT 2 3/8 (60) 1 13/16 (46) 3 1/4 (82) 4 9/16 (115) 2 1/8 (54) 1
*0750D1 AL, B 3/4" NPT low flow 2 3/8 (60) 1 13/16 (46) 3 1/4 (82) 4 9/16 (115) 2 1/8 (54) 1
*0750J12 AL, B SAE 12 3/4" 2 3/8 (60) 1 13/16 (46) 4 (101) 4 15/16 (125) 2 1/8 (54) 1
*0750J12D1 AL, B 3/4" SAE 12 low flow 2 3/8 (60) 1 13/16 (46) 4 (101) 4 15/16 (125) 2 1/8 (54) 1
*0752 AL, B 1/2" NPT 2 3/8 (60) 1 13/16 (46) 3 1/4 (82) 4 9/16 (115) 2 1/8 (54) 1
*0752D1 AL, B 1/2" NPT low flow 2 3/8 (60) 1 13/16 (46) 4 (101) 4 15/16 (125) 2 1/8 (54) 1
*0750JW AL, B 3/4" NPT Two Way 2 3/8 (60) 1 13/16 (46) 3 1/4 (82) 5 3/8 (136) 2 1/8 (54) 1
*0750JWJ12 AL, B SAE 12 3/4" Two Way 2 3/8 (60) 1 13/16 (46) 4 (101) 5 3/8 (136) 2 1/8 (54) 1
*0752JW
REPLACE * WITH BODY MATERIAL TYPE: AL= ALUMINUM, B= BRONZE

Part Number Look Up

General & Pneumatic Specifications

Specifications

All units in inches (mm) or lbs (Kg); English (metric)

Model 0750 - Pressure Ratings/Weights/Service Kits

PRESSURE RATINGS @ 250°F WEIGHTS
MATERIAL AL B AL B
psi 150 180 2 (1) 4(2)
Bar 10.3 12.4
SERVICE KITS (XXX REPRESENTS TEMPERATURE °F)
MODEL O-RING THERMOSTAT
0700-xxx 1 of Buna-N 1
0700V-xxx 1 of Viton 1
0700E-xxx 1 of Neoprene 1

Valve Selection

checkmark inside gear icon Need Help Configuring a Valve?

Use our helpful tool to configure a thermostatic control valve and generate a part number.

Start Your Valve Configuration

Answer all questions that appear below by selecting answers from the drop down boxes.

Yes
Yes
Yes
Yes

Consult your FPE sales representative prior to order, and for other options or questions. +1-262-548-6220

Need Help? Call: +1-262-548-6220

Or send us an email TODAY to connect with us! It is our goal to provide exceptional service!

Contact Us
