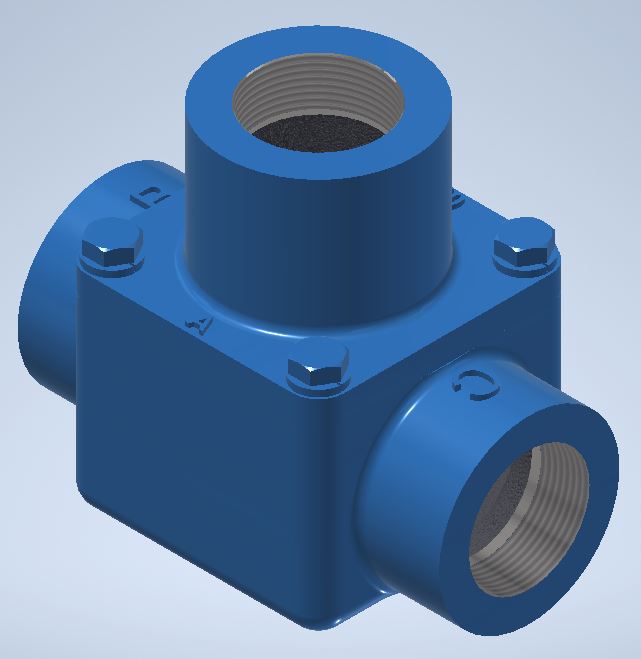

Model 1530
Thermostatic Control Valve
- Size: 1" to 1.5"
- Diameter: DN25 to DN40
- Wide range of temperatures
- Heavy duty
- Self-contained
- Replaceable element
- Non-adjustable
- Rugged construction
- Tamper-proof
- Operate in any orientation
- Compact
Compact and Reliable Temperature Control
Fluid Power Energy (FPE) thermostatic valves utilize the principle of expanding wax, which in the semi-liquid state undergoes large expansion rates within a relatively narrow temperature range. The self-contained element activates a stainless steel sleeve, which directs flow.
All FPE thermostatic valves are factory set at predetermined temperatures: no further adjustments are necessary.
Contact an FPE Representative for connection size options. Contact Us
Helpful Links
Description
When used in a diverting application, on start-up the total fluid flow is routed back to the main system. As fluid temperature rises to the control range, some fluid is diverted to the cooling system. As fluid temperature continues to increase, more flow is diverted. When the thermostat is in a fully stroked condition, all fluid flow is directed to the cooling system.
FPE thermostatic valves may also be used in a mixing application. Hot fluid enters the “B” port and colder fluid enters the “C” port. The flows mix and the thermostat adjusts flow through ports “B” and “C” to reach the desired temperature, exiting the “A” port.
Standard FPE thermostatic valve housings are made from aluminum and grey iron castings, however, ductile iron, bronze, steel and stainless steel housings are available.
Additional BSP, SAE and JIS threads available.

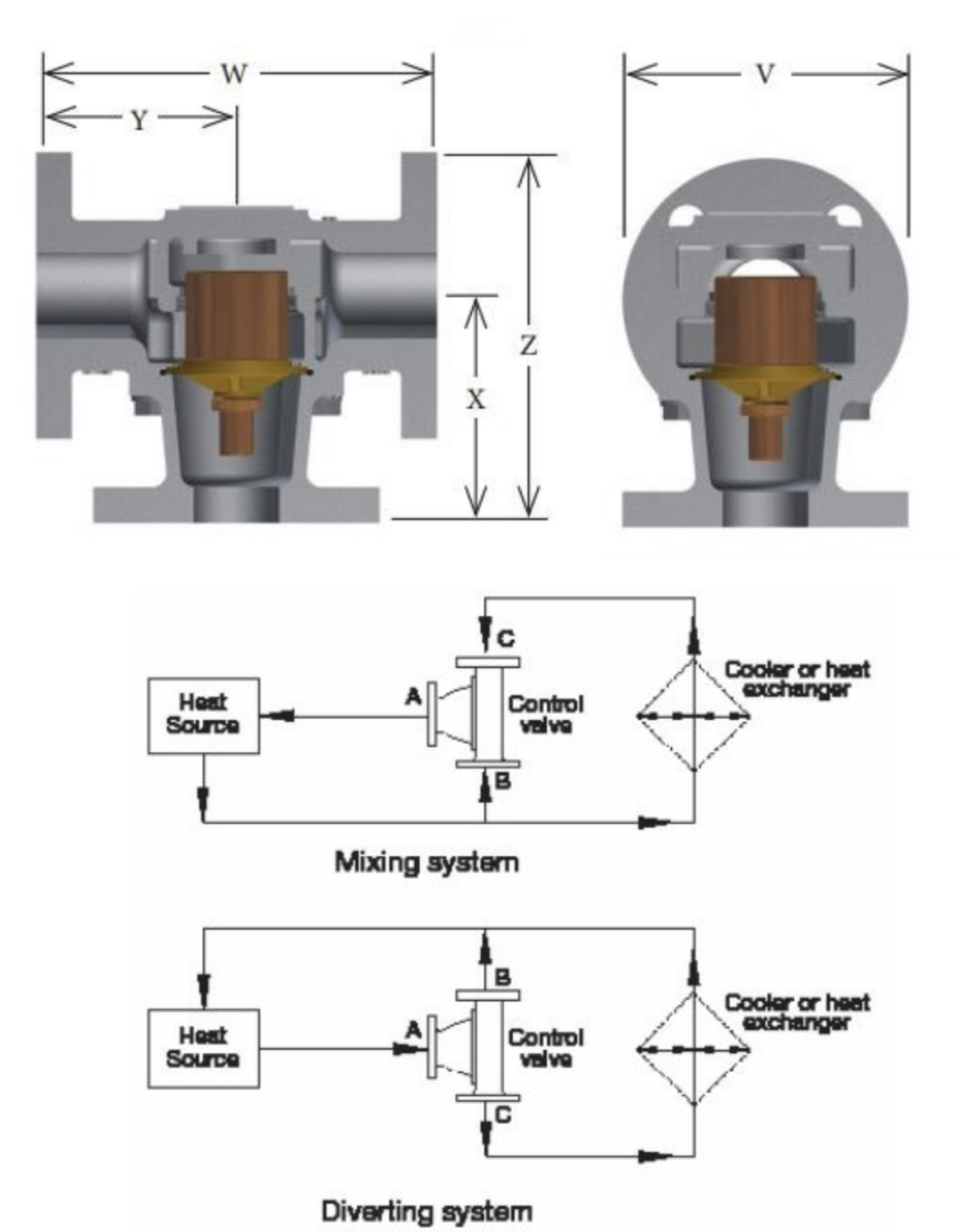

Dimensions

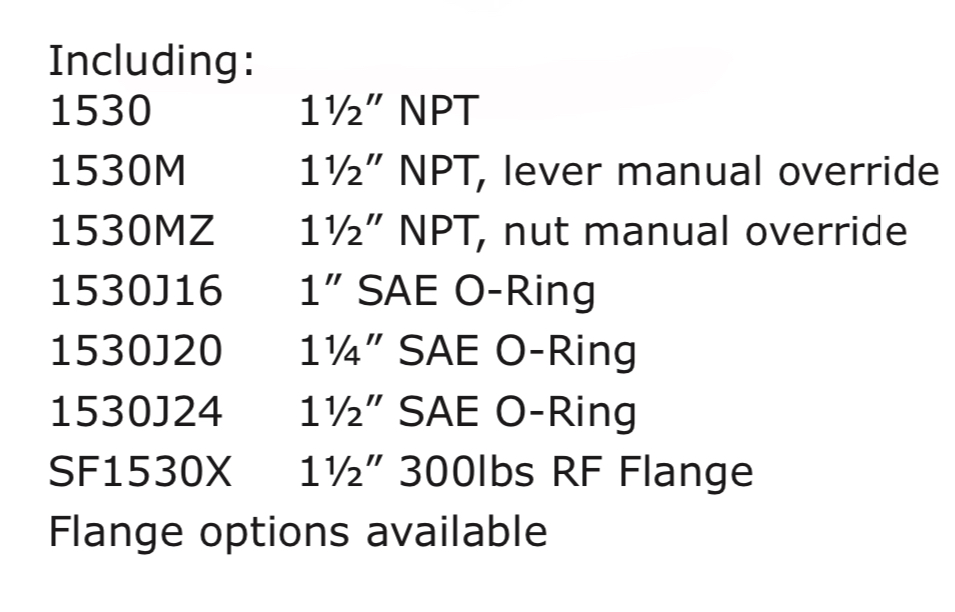

| Model Number | Body Material* | Nominal Pipe Size | Principal Dimensions Units | Flange Drilling | No. of Elements | ||||||
| X | Y | W | Z | V | No. of Holes | Dia. of Holes | Bolt Circle | ||||
| *1530 *1530M | "A, AL, B, D, S, SS" | 1 1/2" NPT | 3 3/4 (95) | 3 1/16 (77) | 6 1/8 (155) | 5 1/4 (133) | 3 3/4 (95) | N/A | N/A | N/A | 1 |
| *1530J16 *1530MJ16 | "A, AL, B, D, S, SS" | SAE 16 1 5/16" - 12 | 3 3/4 (95) | 3 1/16 (77) | 6 1/8 (155) | 5 1/4 (133) | 3 3/4 (95) | N/A | N/A | N/A | 1 |
| *1530J20 *1530MJ30 | "A, AL, B, D, S, SS" | SAE 20 1 5/8" - 12 | 3 3/4 (95) | 3 1/16 (77) | 6 1/8 (155) | 5 1/4 (133) | 3 3/4 (95) | N/A | N/A | N/A | 1 |
| *1530J24 *1530MJ24 | "A, AL, B, D, S, SS" | SAE 24 1 7/8" - 12 | 3 3/4 (95) | 3 1/16 (77) | 6 1/8 (155) | 5 1/4 (133) | 3 3/4 (95) | N/A | N/A | N/A | 1 |
| *1530JU33 *1530MJU33 | "A, AL, B, D, S, SS" | JIS-SAE 33 M 33x2.0 | 3 3/4 (95) | 3 1/16 (77) | 6 1/8 (155) | 5 1/4 (133) | 3 3/4 (95) | N/A | N/A | N/A | 1 |
| *1530JU42 *1530MJU42 | "A, AL, B, D, S, SS" | JIS-SAE 42M 42x2.0 | 3 3/4 (95) | 3 1/16 (77) | 6 1/8 (155) | 5 1/4 (133) | 3 3/4 (95) | N/A | N/A | N/A | 1 |
| *1530JU48 *1530MJU48 | "A, AL, B, D, S, SS" | JIS-SAE 48 M 48x2.0 | 3 3/4 (95) | 3 1/16 (77) | 6 1/8 (155) | 5 1/4 (133) | 3 3/4 (95) | N/A | N/A | N/A | 1 |
| *F1530 *F1530M *F1530MZ | A | 1 1/2" 125lbs FF FLANGE | 3 7/8 (99) | 3 7/16 (87) | 6 7/8 (174) | 6 3/8 (162) | 5 (127) | 4 | 5/8 (15) | 3 7/8 (98) | 1 |
| B | 1 1/2" 150lbs FF FLANGE | 3 13/16 (96) | 3 5/16 (84) | 6 5/8 (168) | 6 1/4 (159) | 5 (127) | 4 | 5/8 (15) | 3 7/8 (98) | 1 | |
| D | 1 1/2" 150lbs RF FLANGE | 4 (102) | 3 9/16 (90) | 7 1/8 (181) | 6 1/2 (165) | 5 (127 | 4 | 5/8 (15) | 3 7/8 (98) | 1 | |
| S | 1 1/2" 150lbs RF FLANGE | 3 7/8 (99) | 3 3/8 (87) | 6 7/8 (174) | 6 7/16 (163) | 5 (127) | 4 | 5/8 (15) | 3 7/8 (98) | 1 | |
| SS | 1 1/2" 150lbs RF FLANGE | 3 7/8 (99) | 3 3/8 (87) | 6 7/8 (174) | 6 7/16 (163) | 5 (127) | 4 | 5/8 (15) | 3 7/8 (98) | 1 | |
| *F1530X *F1530XM *F1530XMZ | S, SS | 1 1/2" 300lbs RF FLANGE | 4 1/8 (103) | 3 5/8 (92) | 7 1/4 (184) | 7 7/8 (198) | 6 1/8 (155) | 4 | 7/8 (22) | 4 1/2 (114) | 1 |
| *F1530X - X15 *F1530 - X15M *F1530 - X15MZ | S, SS | 1 1/2" 600lbs RF FLANGE | 4 3/8 (112) | 4 (100) | 8 (200) | 8 1/8 (206) | 6 1/8 (155) | 4 | 7/8 (22) | 4 1/2 (114) | 1 |
| Replace * with body material type: A = Cast iron, AL = Aluminum B= Bronze, D = Ductile iron, S = Steel, SS = Stainless Steel | |||||||||||
Specifications
Model 1530 - Specifications
| PRESSURE RATINGS @ 250°F | WEIGHTS | |||||||||
| Material | A, AL | B | D | S | SS | A | AL | B | D | S & SS |
| psi | 150 | 180 | 225 | 670 | 590 | 8 (4) | 4 (2) | 8 (4) | 7 (3) | 9 (4) |
| Bar | 10.3 | 12.4 | 15.5 | 46.1 | 40.6 | |||||
| SERVICE KITS (xxx represents temperature °F) | ||||||||||
| MODEL | O-RING | GASKET | LIPSEAL | THERMOSTAT | ||||||
| 1500-xxx | 1 of Buna-N | 1 | 1 | 1 | ||||||
| 1500V-xxx | 1 of Viton | 1 | 1 | 1 | ||||||
| 1500E-xxx | 1 of Neoprene | 1 | 1 | 1 | ||||||
| LIP SEAL INSERTION TOOLS | LIP SEAL EXTRACTION TOOLS | |||||||||
| PART NUMBER | COMPONENT | PART NUMBER | COMPONENT | |||||||
| 1571-IT | LIP SEAL INSERTION PLUG | 1571-RT | LIP SEAL EXTRACTION PLUG | |||||||
