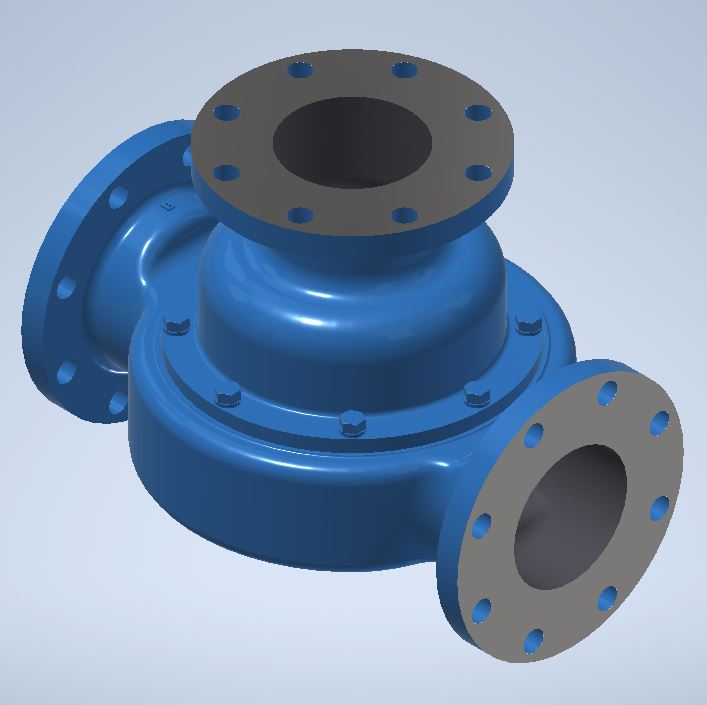

Model 5010

Thermostatic Control Valves

  • Connection Size: 5" FLANGES
  • Dimension: DN125
  • Three-way thermostatic control valve
  • Wide range of temperatures
  • Replaceable, non-adjustable, tamper-proof thermostats
  • Self-contained unit
  • Compact, heavy duty, rugged construction
  • Operate in any orientation

Compact and Reliable Temperature Control
Fluid Power Energy (FPE) thermostatic valves utilize the principle of expanding wax, which in the semi-liquid state undergoes large expansion rates within a relatively narrow temperature range. The self-contained element activates a stainless steel sleeve, which directs flow. All FPE thermostatic valves are factory set at predetermined temperatures: no further adjustments are necessary.

Contact an FPE Representative for connection size options. Contact Us

Where to Buy?

Call Us Today! +1-262-548-6220

Request a Quote

Description

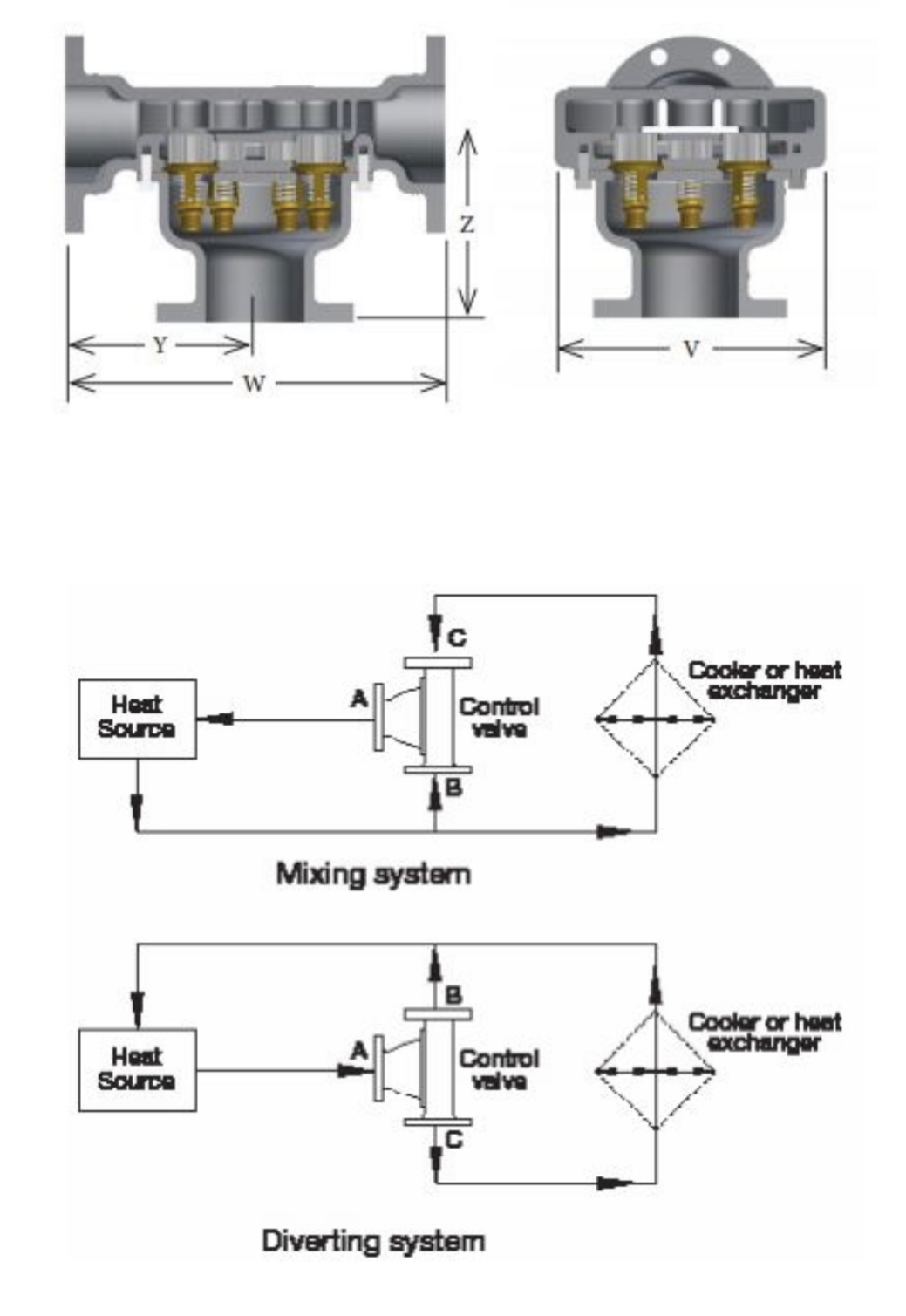

Dimensions

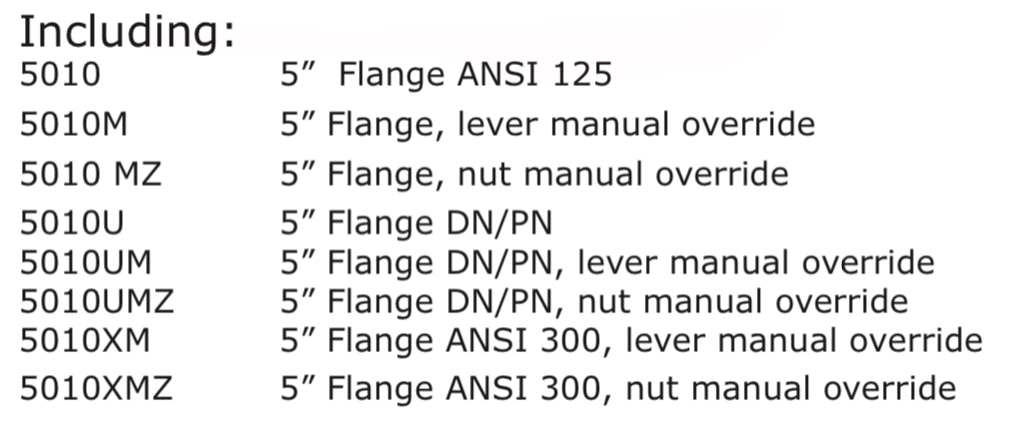

Model Number Body Material* Connection Size Principal Dimensions Units Flange Drilling No. of elements
X Y W Z V No. of Holes Dia. of Hole Bolt Circle
*5010 *5010M *5010MZ A 5" 125lbs FF FLANGE N/A 9 5/8 (244) 19 1/4 (488) 9 1/2 (241) 14 (355) 8 7/8 (22.2) 8 1/2 (215) 6
B 5" 150lbs FF FLANGE N/A 9 7/16 (239) 18 7/8 (479) 9 1/2 (236) 14 (355) 8 7/8 (22.2) 8 1/2 (215) 6
D 5" 150lbs FF FLANGE N/A 9 5/8 (244) 19 1/4 (488) 9 1/2 (241) 14 (355) 8 7/8 (22.2) 8 1/2 (215) 6
S, SS 5" 150lbs FF FLANGE N/A 9 5/8 (244) 19 1/4 (488) 9 1/2 (241) 14 (355) 8 7/8 (22.2) 8 1/2 (215) 6
*5010U *5010UM *5010UMZ A 125DN PN10/16 RF FLANGE N/A 9 5/8 (244) 19 7/16 (493) 9 9/16 (243) 14 (355) 8 3/4 (19.00) 8 1/4 (210) 6
B 125DN PN10/16 RF FLANGE N/A 9 1/2 (240) 18 15/16 (481) 9 3/8 (237) 14 (355) 8 3/4 (19.00) 8 1/4 (210) 6
D 125DN PN10/16 RF FLANGE N/A 9 7/16 (239) 18 7/8 (479) 9 5/16 (236) 14 (355) 8 3/4 (19.00) 8 1/4 (210) 6
S, SS 125DN PN10/16 RF FLANGE N/A 9 9/16 (242) 19 1/8 (485) 9 7/16 (239) 14 (355) 8 3/4 (19.00) 8 1/4 (210) 6
Replace * with body material type: A = Cast iron, B = Bronze, D= Ductile iron, S = Steel, SS = Stainless Steel

Part Number Look Up

General & Pneumatic Specifications

Specifications

Model 5010 - Specifications

PRESSURE RATINGS @ 250°F WEIGHTS
Material A B D S SS A B D S & SS
psi 175 195 225 245 225 161 (73) 160 (73) 140 (63) 150 (68)
Bar 12.0 13.4 15.5 16.9 15.5
SERVICE KITS (xxx represents temperature °F
MODEL O-RING GASKET LIPSEAL THERMOSTAT
5000-xxx 1 of Buna-N 1 6 6
5000V-xxx 1 of Viton 1 6 6
5000E-xxx 1 of Neoprene 1 6 6
LIP SEAL INSERTION TOOLS LIP SEAL EXTRACTION TOOLS
Part Number Component Part Number Component
2071-IT Lip Seal Insertion Plug 2071-RT Lip Seal Extraction Plug
NOTE: Service Kits are supplied with Housing O-Rings & Housing Gaskets. Make sure to replace your original housing seal using the same style seal, and discard the extra component. If your valve was originally supplied with a gasket, DO NOT attempt to use an O-Ring, as the seal will leak without a groove to accept the O-Ring.
NOTE: FPE reserves the right to substitute ordered material for better quality.
