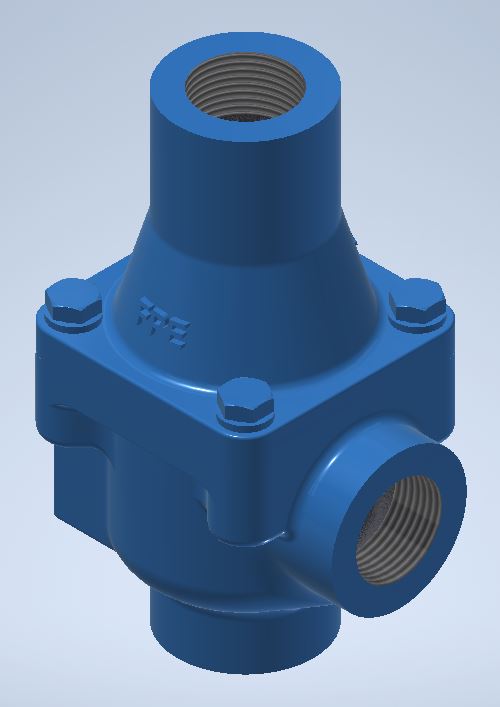

Model 1017/1117/1217

Thermostatic Control Valve

  • Connection Sizes: 1/2-1 1/2" NPT/BSPP/BSPT and SAE -8,-12,-16,-24
  • Diameter: DN15 to DN40
  • Two-way Thermostatic Control Vavle
  • Wide range temperatures
  • Replaceable, non-adjustable, tamper-proof thermostats
  • Self-contained unit
  • Compact, heavy duty, rugged construction
  • Operate in any orientation

Compact and Reliable Temperature Control

Fluid Power Energy (FPE) thermostatic valves utilize the principle of expanding wax. As the fluid temperature increases, the wax transforms from a solid to a liquid state. This expansion causes the thermostat sleeve to stroke thereby controlling the direction of fluid flow to achieve the required operation.

All FPE valves can be used for diverting or mixing applications without modification of the valve assembly. FPE thermostatic valves are factory set to predetermined set-point temperatures, so no field adjustments are necessary. Simply connect the valve to your system and walk away.

Contact an FPE representative today to see how our thermostatic control valves can enhance your application.  Contact Us

Where to Buy?

Call Us Today! +1-262-548-6220

Request a Quote

Description

Part Number Look Up

General & Pneumatic Specifications

Specifications

Valve Selection

checkmark inside gear icon Need Help Configuring a Valve?

Use our helpful tool to configure a thermostatic control valve and generate a part number.

Start Your Valve Configuration

Answer all questions that appear below by selecting answers from the drop down boxes.

Yes
Yes

Consult your FPE sales representative prior to order, and for other options or questions. +1-262-548-6220
